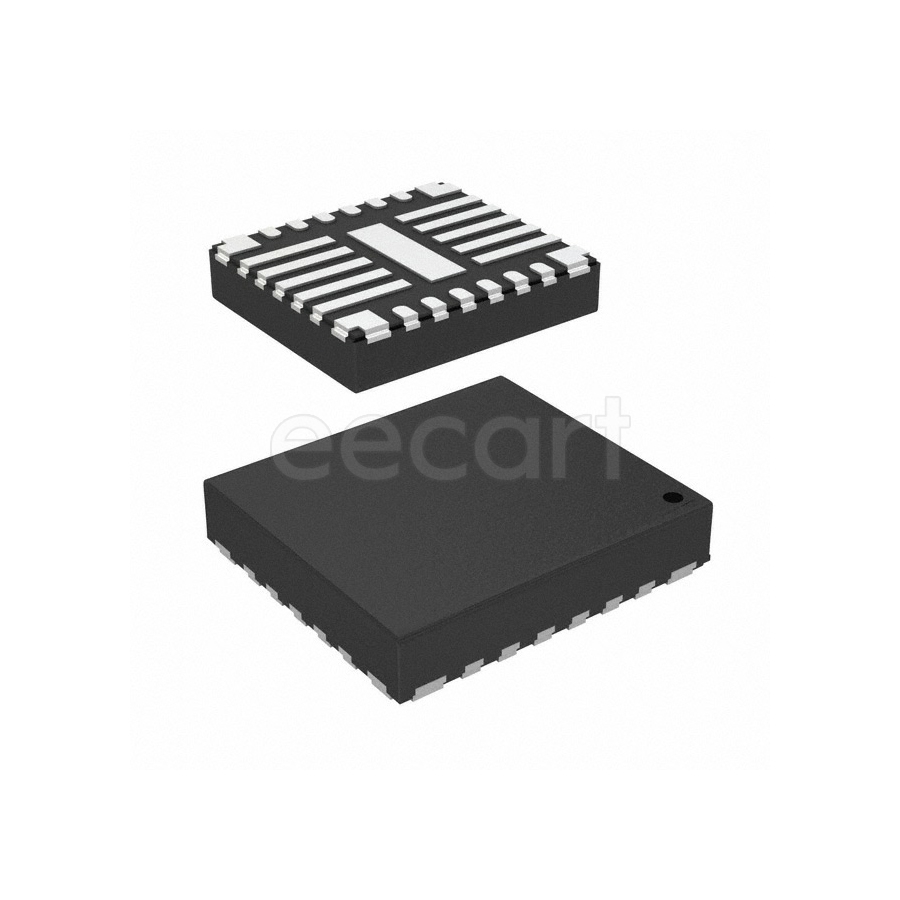

LP87524JRNFRQ1
Manufacturer:
Texas Instruments
Mfr.Part #:
LP87524JRNFRQ1
Datasheet:
Description:
Voltage Regulators - Switching VQFN-HR-26 SMD/SMT Buck Programmable 600 mV to 3.36 V
| Parameter | Value |
|---|---|
| Length | 4.5 mm |
| Width | 4 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 26 |
| Height | 900 µm |
| Thickness | 0.9 mm |
| RoHS | Compliant |
| Features | I²C, UVLO |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Number of Outputs | 4 |
| Output Current | 10 A |
| Output Voltage | 600 mV to 3.36 V |
| Switching Frequency | 4 MHz |
| Min Input Voltage | 2.8 V |
| Max Input Voltage | 5.5 V |
| Quiescent Current | 1.4 µA |
| Packaging | Reel |
| Output Type | Programmable |
| Topology | Buck |
| Function | Step-Down |
Stock: 1157
Distributors
pcbx
pcbxUnit Price$2.50531
Ext.Price$2.50531
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.50531 | $2.50531 |
| 10 | $2.11181 | $21.11810 |
| 25 | $1.93762 | $48.44050 |
| 50 | $1.77780 | $88.89000 |
| 100 | $1.63115 | $163.11500 |
| 300 | $1.57228 | $471.68400 |
| 500 | $1.51553 | $757.76500 |
| 1000 | $1.46606 | $1466.06000 |
